Brand Name : HUITONG
Model Number : Hydraulic Hammer
CertifiPCion : ISO9001
Place of Origin : China,Guangzhou
MOQ : 1 Piece
Price : $10000-15000
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 200sets/month
Delivery Time : 5-10days
Packaging Details : Standard Packing
Condition : 100%new
After-sales service provided : Video technical support,Online support
Efficiency : High Efficiency
Warranty : 1 Year
Color : Customer's Requirement
Type : Hydrualic
Huitong Hydraulic Pile Hammers Hot Sale Hydraulic Pile Breaker CE/ISO Factory Price OEM 100%new 1 Year Warranty
Features
1. In the general piling wokr, it is faster than other system.
2. It saves time in the pile driving or pile pulling.
3. We adopt rubber pad to reduce noise and vibration on the outside.
4. The hydraulic oil motor is small in size and light, but generates high drive power and speed.
5. With the use of changeable pump, you may properly revision the vibration frequency.
RPM | 2800 | 3000 | 3000 | 3000 | 2600 | 2600 | 2600 |
Exciting Force (T) | 39.5 | 48 | 51 | 53.4 | 55.5 | 58 | 63 |
Hydraulic system working pressure (Bar) | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
Hydraulic system Minium flow requirements(Lpm) | 175 | 240 | 270 | 270 | 280 | 300 | 320 |
Main machine weight (T) | 1.55 | 1.65 | 1.65 | 1.8 | 2.0 | 2.05 | 2.1 |
Suitable for excavator weight (T) | 20-24 | 24-30 | 30-35 | 38-42 | 35-40 | 40-45 | 48above |
Clip mouth weight (KG) | C15:455 | C16E:530 | C18E:578 | C30B:455 | C35B:530 | - | - |
Seconday arm weight (KG) | A200:500kg | A250B:600KG | A350:900KG | - | - | - | - |
![]() |

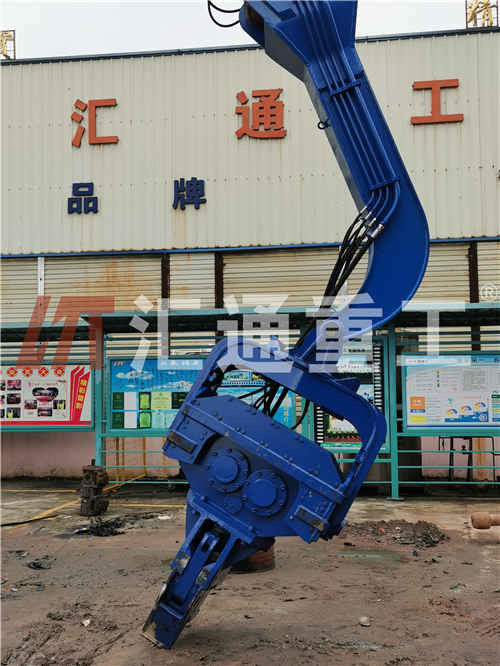

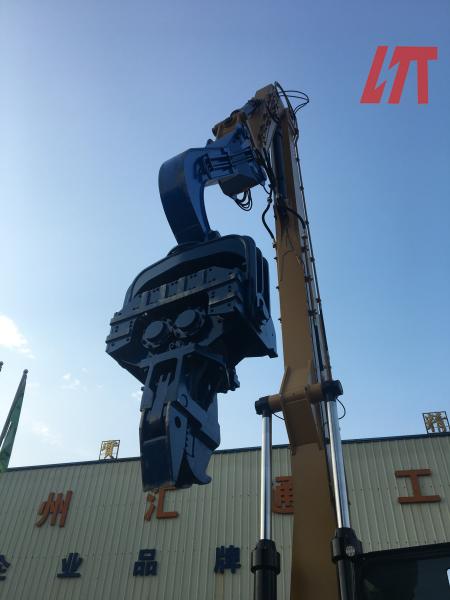

ISO 9001 39.5T 2800 RPM Hydraulic Pile Hammer Breaker Images |
